激光雷达用APD
简 述：
自Laser Components公司成立以来，已经有多年的APD研发和生产经验。目前LC公司可以提供高中低档的各型APD探测器及附件。
品 牌：
德国 LaserComponents
产品型号：
- LC激光雷达用APD
新闻
更多3D 激光雷达核心部件
应用：三维映射、自适应巡航控制、 高级驾驶辅助系统、农业、无人驾驶、无人机、安全扫描
提供产品：
905DxxUA Series Pulsed Laser Diodes
Highly Reliable Pulsed Laser Diodes
▪ AEC-Q101 automotive qualified with excellent temperature stability
▪ Up to 110W laser output power
▪ 905nm
Si APD Arrays
Simplify Time-of-Flight Sensor Development
▪ 8-, 12- or 16-element arrays, 190 x 650µm, custom versions
▪ 14-pin DIL or SMD package
▪ Responsivity between 440nm–1000nm

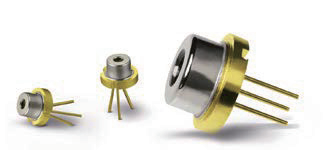

QuickSwitch Pulsed Laser Diodes
Fastest Hybrid Pulsed Laser Diode
▪ 1.5 to 5ns pulse duration, up to 90W in TO-56 package
▪ Pulse frequencies at up to 200kHz
▪ 905nm
APD Receivers
Best Possible Signal-to-Noise Ratio
▪ Low Noise Equivalent Power
▪ Various gain / bandwidth configurations
▪ Responsivity between 400nm–1100nm (Si);
or 900nm–1700nm (InGaAs)
CMOS 芯片用于快速雷达
| 规格 | 单位 | |
| 尺寸 | 8960x5200 | um |
| 技术规格 | 0.35umCMOS | |
| 像元数量 | 192x2 | |
| SPADs/像元 | 4 | |
| 像元尺寸（仅仅SPADs） | 40.56x209.6 | um |
| 填充因数 | 5.32 | % |
| 行距 | 1019.78 | um |
| 帧速@20MHz读出时间 | 52 | KHz |
